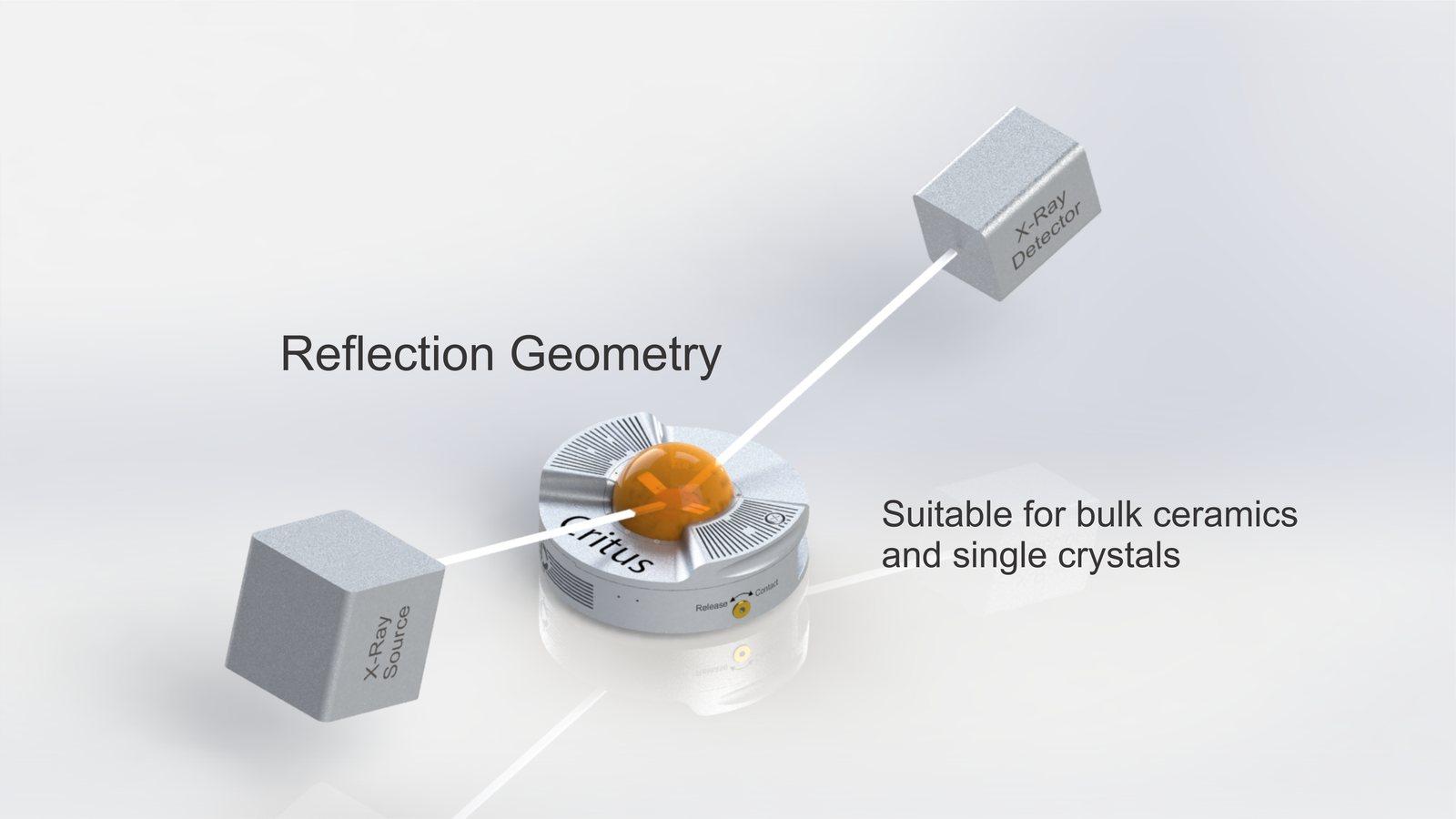

Bulk Reflection Geometry
– 1 minute to read
Description
Specifications
- Suitable for most laboratory based x-ray diffractometers and synchrotron sources,
- For example*: Bruker D8, Rigaku SmartLab, PanAnalytical Empyrean and X'Pert.
- Mechanical strain and electrical polarisation measurements in situ.
- Applied voltages ±5 kV,

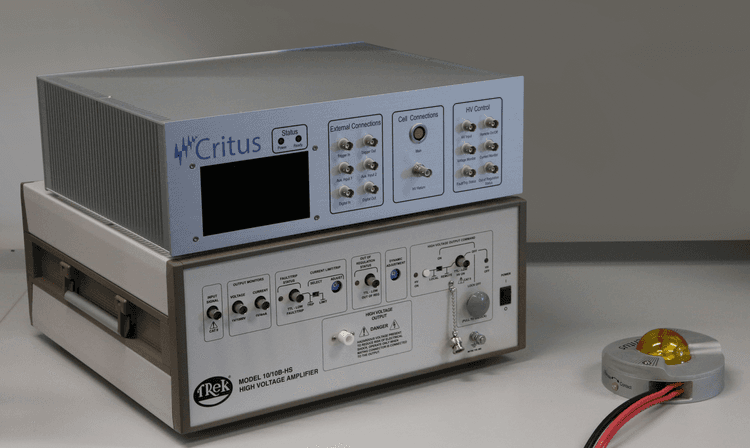

- Recommended external amplifier is the Trek 10/10B-HS, although custom cabling for alternative amplifiers is possible upon request.
- Silicon oil can be used in horizontal geometry to increase achievable field.

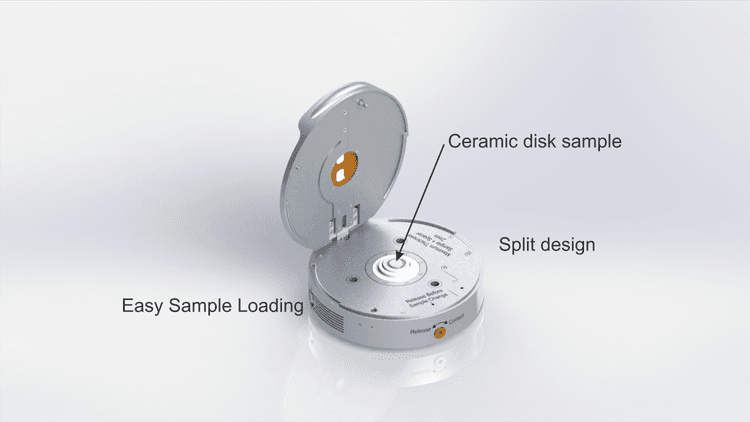

- Sample diameters of 7 mm to 12 mm.
- Sample thicknesses of 0.1 mm to 2 mm.
- Temperature range from room temperature to 200°C.

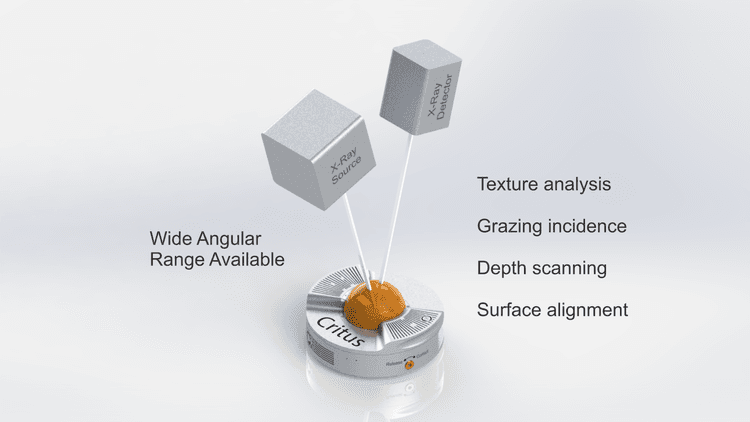

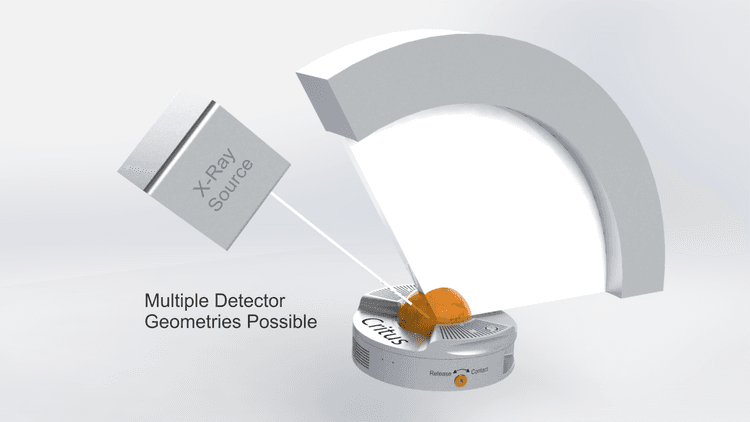

- Large scattering angle range, including grazing incidence angles.

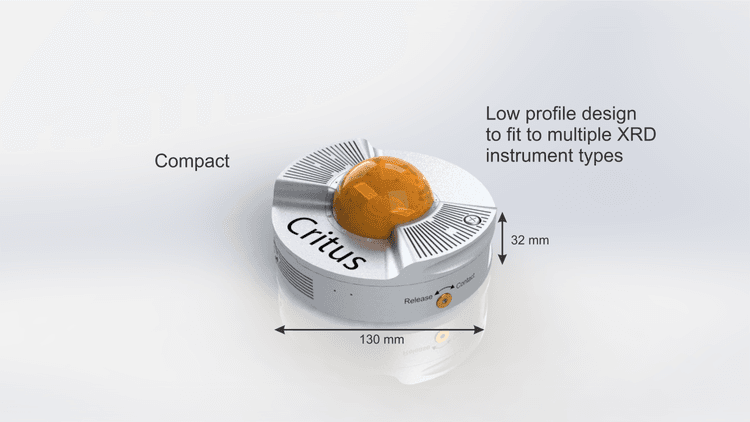

- Compact system design for maximum portability and versatility.
- Interlocked for safety with voltage application only possible when cell is closed.
Please Note
