Thin Film
– 1 minute to read
Description
Specifications

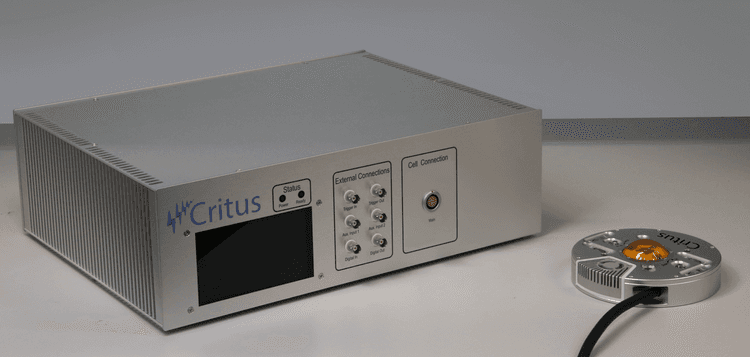

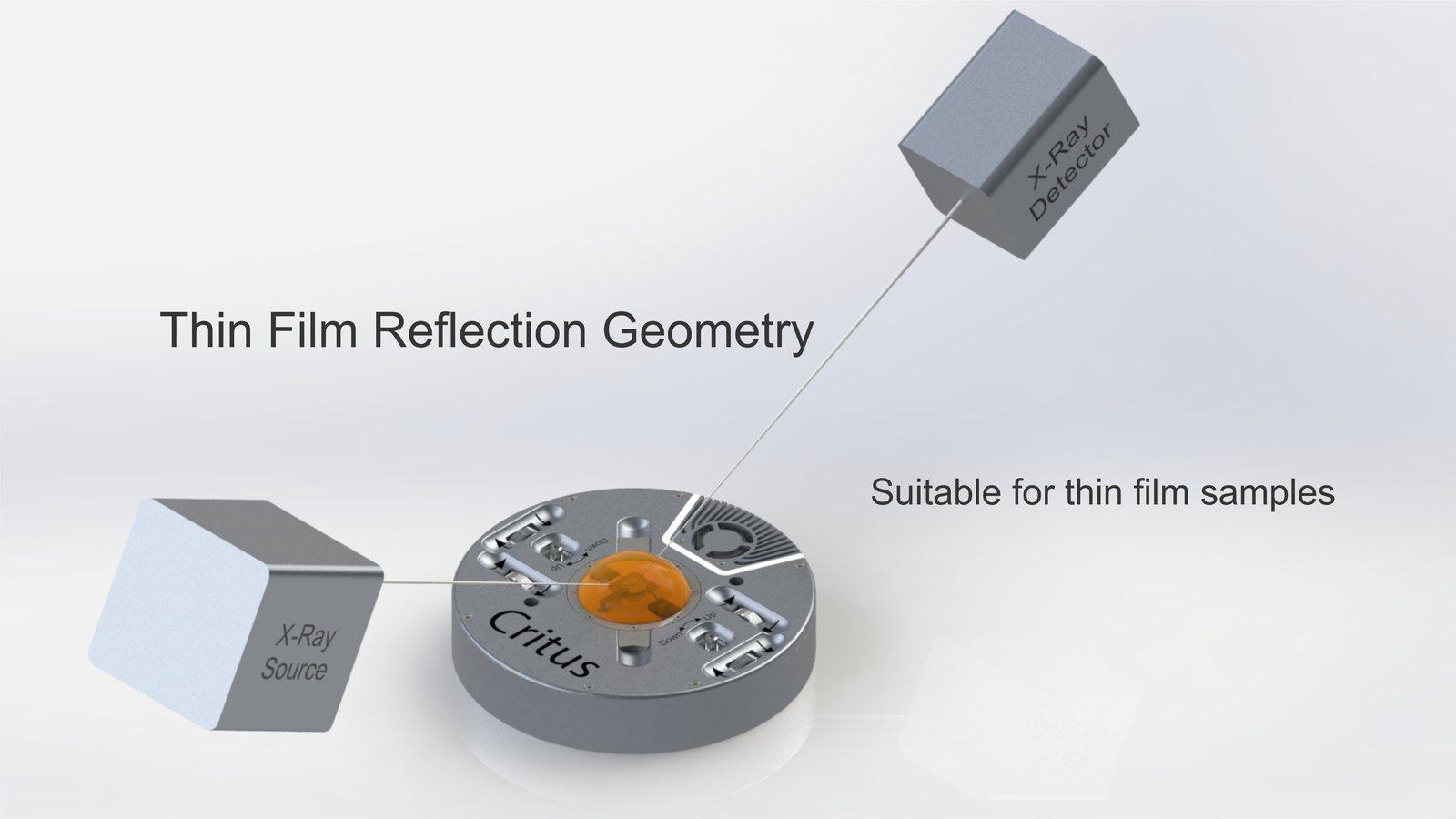

- Suitable for most laboratory based x-ray diffractometers and synchrotron sources.
- For example*: Bruker D8, Rigaku SmartLab, PanAnalytical Empyrean and X'Pert.
- Depending on feature size of interest, x-ray beam focusing options may be required.
- Polarization, I-V and C-V curve measurements in situ.
- Applied voltages ±50V.

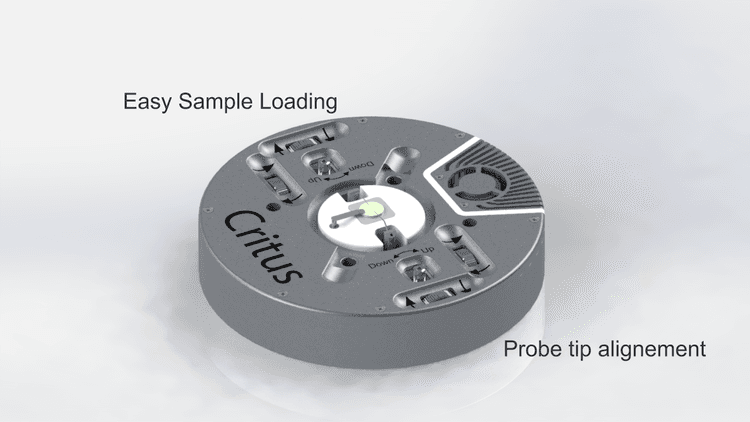

- Sample diameters up to 15 mm with probe tip positioning over full area.
- Sample/substrate thicknesses up to 3 mm.
- Temperature range from room temperature to 300°C.

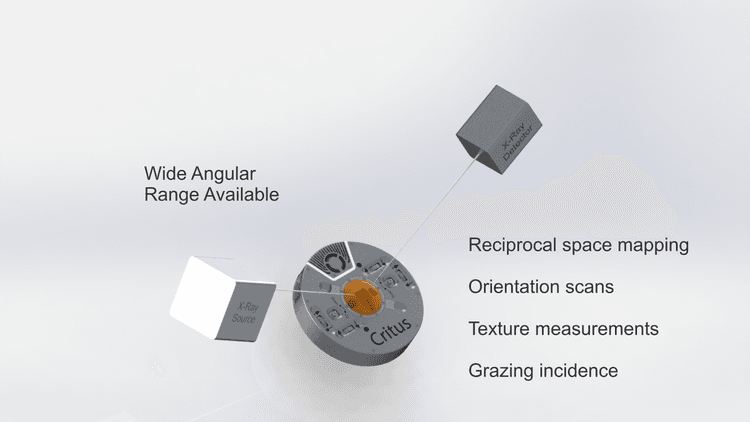

- Large scattering angle range, including grazing incidence angles for GIXRD or reflectivity measurements.

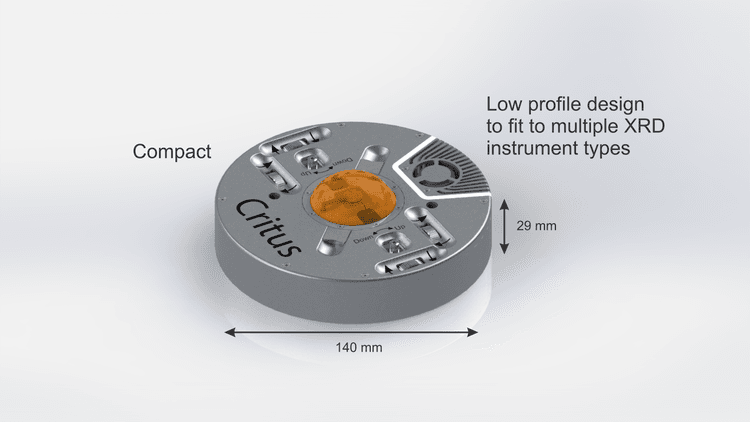

- Compact system design for maximum portability and versatility.
Please Note
Related Products
![Product Bulk Transmission Geometry](/_gatsby/image/5fc75b91cb0176014230296428ce8897/89c93600785f6e1555486c194acc1d81/IMG_0102.jpg?u=https%3A%2F%2Fimages.ctfassets.net%2F9uejui175jzg%2F3Zez13l1L6slV1hRpaFur%2Fc8c102fbd2f12e69d390cc4fbe220470%2FIMG_0102.JPG&a=w%3D750%26h%3D375%26fm%3Djpg%26q%3D75&cd=2023-09-01T02%3A16%3A57.793Z)
Working with high-energy x-rays offers some advantages in the study of bulk electro-mechanical materials. The Transmission Geometry system is ideally suited for use at high-energy synchrotron x-ray beamlines or lab sources with higher energy targets such as Ag or Mo. Precise polarization and strain measurements can be obtained in-situ at voltages up to ±7.5 kV.
![Product Bulk Reflection Geometry](/_gatsby/image/3717847a28876861fde13116c6ce9588/f827427280341b20da9eb0ab4d3eed46/RigakuSmartlabRCell.png?u=https%3A%2F%2Fimages.ctfassets.net%2F9uejui175jzg%2F7FqS5ouN8KrFMml82OCeEH%2F8e634c25313f5011e734b055a194b5c4%2FRigakuSmartlabRCell.png&a=w%3D750%26h%3D375%26fm%3Dpng%26q%3D75&cd=2022-08-24T07%3A18%3A54.611Z)
The Reflection Geometry system allows electric fields of ±5kV to be applied to bulk materials while conducting XRD measurements from a surface. Ideal for electro-ceramic and single crystal research in laboratory or synchrotron x-ray systems. Electrical current and displacements sensors are packaged within the unit allowing simultaneous strain and polarization measurements.
